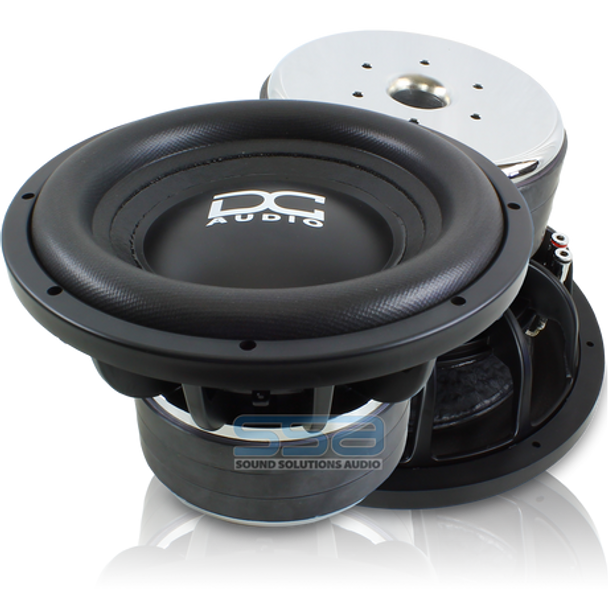

DC Audio Level 4 18 M3 1400w Subwoofer

(No reviews yet) Write a Review
SKU:
DC Audio Level 4 18 M3
Availability:
Estimated build time of 7 - 10+ business days.
  • DC Audio Level 4 18 M3 1400w Subwoofer
  • DC Audio Level 4 18 M3 1400w Subwoofer
  • DC Audio Level 4 18 M3 1400w Subwoofer
  • DC Audio Level 4 18 M3 1400w Subwoofer
MSRP: $749.99
1800woofers Price $564.99
— You save $185.00

Description

The Level 4 m3 was designed to take even more power and get even louder. With fantastic power handling and smashing lows it's hard to beat. The Level 4 sub is a large triple stacked motor with a chrome top plate and T yoke yielding 23.5mm of X-Max. .

Key Features

  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer foam surround
  • Polypropylene dust cover with DC logo
  • Triple 8” OD semi cup progressive roll spider
  • Sewn down HD lead wire
  • Extra heavy duty interweaved tinsel lead wire sewn to spider
  • Cast aluminum black frame
  • FEA analyzed and optimized motor assembly – Fully CNC machined
  • Rubber mounting gasket
  • Rubber Motor Boot
  • Chrome spring loaded push terminals
  • 3” 8 Layer Flay Wound Hi-temp Aluminum voice coil wound on black anodized voice coil former
10" 12" 15" 18"
Mounting Depth 6.25" 6.75" 8" 9.5"
Mounting Hole Diameter 9.25" 11" 14" 16.75"
Outside Driver Diameter 11.0" 12.5" 15.7" 18.5"
Motor Width 7.75" 7.75" 7.75" 7.75"
Weight 32lbs 33lbs 33.5lbs 36lbs
VC Diameter 3" 3" 3" 3"
Displacement .16³ ft .18³ ft .21³ ft .26³ ft
Magnet Weight 29lbs 29lbs 29lbs 29lbs
Power Handling RMS/Peak 1400/2800 1400/2800 1400/2800 1400/2800
Impedance (Ohm) D1 or D2 D1 or D2 D1 or D2 D1 or D2
Sd 324cm² 481cm² 823cm² 1217cm²
Vas 12.42 liters 27.38 liters 80.16 liters 175.29 liters
Cms .085 mm/N .085 mm/N .085 mm/N .085 mm/N
Mms 184.5 g 207.53 g 318.5 g 427.53 g
Fs 40.2 Hz 37.9 Hz 30.6 Hz 26.4 Hz
BL 19.18 NA 19.18 NA 19.18 NA 19.18 NA
Re 3.82 Ohm 3.82 Ohm 3.82 Ohm 3.82 Ohm
Le 3.78 mH 3.78 mH 3.78 mH 3.78 mH
Qms 7.77 8.24 10.2 11.82
Qes .49 .52 .644 .746
Qts .461 .489 .60 .701
Xmax 23.5 mm 23.5 mm 23.5 mm 23.5 mm
Ref SPL @ 1 watt 84 dB 86.4 dB 87.4 dB 88.2 dB
Suggested Sealed .75³ ft 1³ ft 2.75³ ft 4³ ft
Suggested Ported 1.0³ ft 1.5³ ft 3.0³ ft 5.5³ ft
  • 8ga Direct Leads- This upgrade adds 18" of 8ga OFC wire for your leads instead of using the stock push terminals
  • AR Cone- This upgrade adds the AR Cone/Surround to your sub. The cone is a kevlar impregnated reinforced cone with their large wide roll surround.
  • Carbon Fiber Dustcap- This upgrade adds their Carbon Fiber Dustcap to your subwoofer.
  • XL Upgrade- This upgrade adds the XL coil and their dual leaded spider to your Level 4 subwoofer.
