DC Audio
DC Audio Level XL-Elite Recone
- SKU:
- DC Recone XL-Elite
- Availability:
- Estimated build time of 7 - 10+ business days.
- Weight:
- 5.00 LBS
- Shipping:
- Calculated at Checkout
Description
The XL m4 ELITE is an Evolution of our #1 Selling XL Subwoofer line. We have redesigned the motor giving it a fresh new look, Added a pole vent and larger magnets, FEA optimized it and mated it with the DC Frame using 10 inch spiders.
The sub came from demand. XL style motor, 3 inch 8 layer coil, 10 inch spiders and the “famous for its performance and good looks” DC Frame in 15 and 18!!
Key Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Quad 10"OD Spiders
- Dual Extra heavy duty interweaved tinsel lead wire
- Cast Heavy Duty DC Aluminum black & Grind frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- 8 Awg DC OFC Direct Leads
- 3" 8 Layer Flat Wound Hi-temp Aluminum Voice Coil
- Power Handling: 2200 Watts RMS 4400 Watts Peak
| 12" | 15" | 18" | |
|---|---|---|---|
| Mounting Depth | 9.75" | 11" | 12" |
| Mounting Hole Diameter | 11.15" | 14.25" | 16.90" |
| Outside Driver Diameter | 12.5" | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" | 3.0" |
| Displacement | .19 ft | .23 ft | .26ft |
| Power Handling rms/peak | 2200/4400 | 2200/4400 | 2200/4400 |
| Ohm Options | d.7/d1/d2/d4 | d.7/d1/d2/d4 | d.7/d1/d2/d4 |
| Sd | 494 cm | 791 cm | 1159 cm |
| Vas | 22.368 L | N/A L | 129.16 L |
| Cms | 0.076 Mm/n | N/A Mm/n | 61.35 um/n |
| Mms | 332.5 g | 367.4 g | 534.19 g |
| Fs | 31.63 Hz | 30.1 Hz | 27.8 Hz |
| Bl | 24.165 N/A | 23.73 N/A | 26.49 N/A |
| Re | 4.169 Ohm | 1.8 Ohm | 4.66 Ohm |
| Le | 5.539 mH | N/A mH | 4.42 mH |
| Qms | 6.204 |
6.31 |
8.27 |
| Qes | 0.4717 |
0.37 |
0.62 |
| Qts | 0.4384 |
0.35 |
0.577 |
| Xmax | 34mm | 34mm | 34mm |
| Ref SPL @1 watt | N/A | 90.3 db | 88.25 db |
| Suggest Sealed Box | 1.0 ft | 2.0 ft | 3.5 ft |
| Suggested Ported Box | 1.50 ft | 3.25 ft | 5.5 ft |
Related Products
DC Audio
DC Audio Level XL-SPL Recone
MSRP:
$299.99
1800woofers Price
$169.99
The XLM4-SPL is the next generation of our most award-winning driver. The XLM4-SPL has an added pole vent, redesigned top plate and T yoke, larger magnets wrapped in a stylish motor boot an 8-layer...
DC Recone XL-SPL
MSRP:
$299.99
1800woofers Price
$169.99
MSRP:
$199.99
1800woofers Price
$84.99
DC Audio
DC Audio Level 3 Recone
MSRP:
$249.99
1800woofers Price
$129.99
The level 3 sub is the ultimate daily driver sub. It puts out the low lows with lots of output designed for sealed or ported enclosures. The Level 3 sub is a triple stacked FEA optimized motor...
DC Recone LVL3
MSRP:
$249.99
1800woofers Price
$129.99
DC Audio

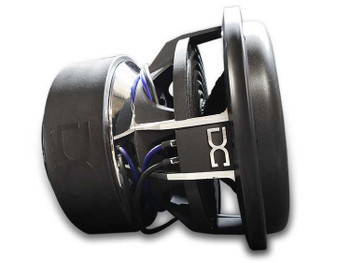

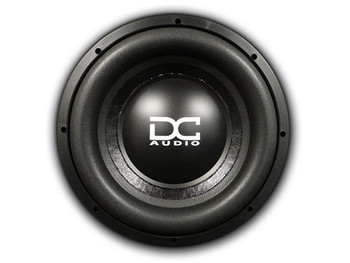

DC Audio Level 5 Recone
