Sound Solutions Audio

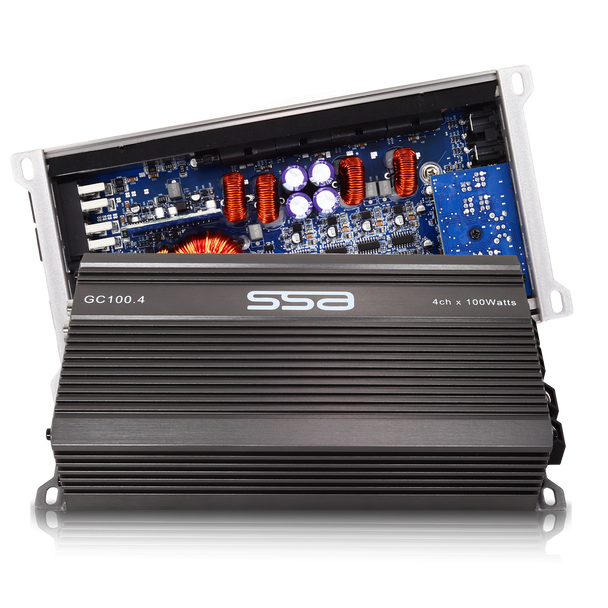

SSA GC100.4 - 4 Channel Micro Amplifier - 100w x 4 Ch
- SKU:
- SSA-GC100.4
- Availability:
- Ships within 1 - 2 Business Days
- Bulk Pricing:
- Buy in bulk and save
On Sale
Description
Features:
View AllClose
- 4 x 100 Watts RMS @ 4 Ohm
- Compact Design for Smaller Installation Footprint
- Angled Terminals for show quality installations
- Full Range Class D Design
- Conformal Coated Printed Circuit Board for Marine and Motorcycle Applications
- DC, Short Circuit, Thermal and Overload Protection
- Diagnostic LEDs
- OUTPUT POWER @ 14.4V input
- RMS per channel at 4 Ohms: 100 W x 4 CH
- RMS per channel at 2 Ohms: 165 W x 4 CH
- RMS Bridged Mono at 4 Ohms: 330 W x 2 CH
- RMS Mono at 1 Ohm: N/A
- INPUT SENSITIVITY: 200mV - 6.0V
- FREQUENCY RESPONSE: 10Hz - 30KHz +/- 0.5dBv
- THD: LESS THAN 0.5%
- S/N RATIO: > 91 dB
- CHANNEL SEPARATION: > 70 dB
- DAMPING FACTOR: @100Hz 4 ohm > 100
- CROSSOVER RANGE: CH 3&4, CH 1&2
- High Pass, 12dB/Octave 20 Hz - 8K Hz
- Low Pass, 24dB/Octave 50 Hz - 8K Hz
- Band Pass: N/A
- Variable Bass Boost: No
- Wired remote bass control included: No
- Phase Shift (0 - 180 degrees): No
- Fusing: 1 x 60A
- Size: (L x W x H) in 8.26 x 4.68 x2.04
1 Review
-
Amp
THe amp is very small. I replaced my 4 channel 75 x4 with this amp in the same location using same ground etc. This would be a good size for a motorcycle.
