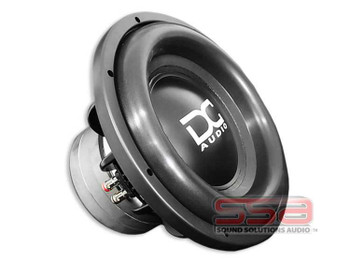

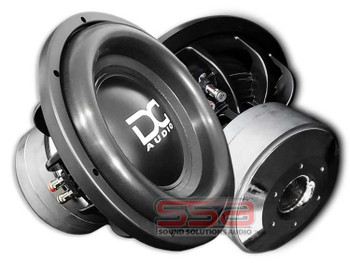

DC Audio Level 4 15 M3 1400w Subwoofer
- SKU:
- DC Audio Level 4 15 M3
- Availability:
- Estimated build time of 7 - 10+ business days.
- Weight:
- 40.00 LBS
- Shipping:
- Calculated at Checkout
Description
The Level 4 m3 was designed to take even more power and get even louder. With fantastic power handling and smashing lows it's hard to beat. The Level 4 sub is a large triple stacked motor with a chrome top plate and T yoke yielding 23.5mm of X-Max. .
Key Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Triple 8” OD semi cup progressive roll spider
- Sewn down HD lead wire
- Extra heavy duty interweaved tinsel lead wire sewn to spider
- Cast aluminum black frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- Chrome spring loaded push terminals
- 3” 8 Layer Flay Wound Hi-temp Aluminum voice coil wound on black anodized voice coil former
| 10" | 12" | 15" | 18" | |
| Mounting Depth | 6.25" | 6.75" | 8" | 9.5" |
| Mounting Hole Diameter | 9.25" | 11" | 14" | 16.75" |
| Outside Driver Diameter | 11.0" | 12.5" | 15.7" | 18.5" |
| Motor Width | 7.75" | 7.75" | 7.75" | 7.75" |
| Weight | 32lbs | 33lbs | 33.5lbs | 36lbs |
| VC Diameter | 3" | 3" | 3" | 3" |
| Displacement | .16³ ft | .18³ ft | .21³ ft | .26³ ft |
| Magnet Weight | 29lbs | 29lbs | 29lbs | 29lbs |
| Power Handling RMS/Peak | 1400/2800 | 1400/2800 | 1400/2800 | 1400/2800 |
| Impedance (Ohm) | D1 or D2 | D1 or D2 | D1 or D2 | D1 or D2 |
| Sd | 324cm² | 481cm² | 823cm² | 1217cm² |
| Vas | 12.42 liters | 27.38 liters | 80.16 liters | 175.29 liters |
| Cms | .085 mm/N | .085 mm/N | .085 mm/N | .085 mm/N |
| Mms | 184.5 g | 207.53 g | 318.5 g | 427.53 g |
| Fs | 40.2 Hz | 37.9 Hz | 30.6 Hz | 26.4 Hz |
| BL | 19.18 NA | 19.18 NA | 19.18 NA | 19.18 NA |
| Re | 3.82 Ohm | 3.82 Ohm | 3.82 Ohm | 3.82 Ohm |
| Le | 3.78 mH | 3.78 mH | 3.78 mH | 3.78 mH |
| Qms | 7.77 | 8.24 | 10.2 | 11.82 |
| Qes | .49 | .52 | .644 | .746 |
| Qts | .461 | .489 | .60 | .701 |
| Xmax | 23.5 mm | 23.5 mm | 23.5 mm | 23.5 mm |
| Ref SPL @ 1 watt | 84 dB | 86.4 dB | 87.4 dB | 88.2 dB |
| Suggested Sealed | .75³ ft | 1³ ft | 2.75³ ft | 4³ ft |
| Suggested Ported | 1.0³ ft | 1.5³ ft | 3.0³ ft | 5.5³ ft |
- 8ga Direct Leads- This upgrade adds 18" of 8ga OFC wire for your leads instead of using the stock push terminals
- AR Cone- This upgrade adds the AR Cone/Surround to your sub. The cone is a kevlar impregnated reinforced cone with their large wide roll surround.
- Carbon Fiber Dustcap- This upgrade adds their Carbon Fiber Dustcap to your subwoofer.
- XL Upgrade- This upgrade adds the XL coil and their dual leaded spider to your Level 4 subwoofer.
