DC Audio
DC Audio Neo Elite 3.5 15 3500w Subwoofer
- SKU:
- DC Audio Neo Elite 3.5 15 3500w Subwoofer
- Availability:
- Estimated build time of 7 - 10+ business days.
- Weight:
- 67.00 LBS
- Shipping:
- Calculated at Checkout
Description

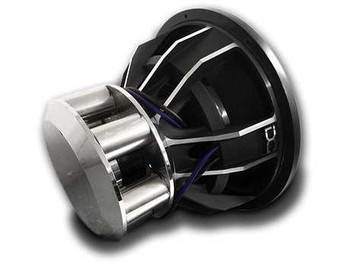

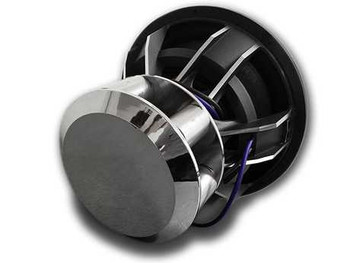

The Neo Elite is DC Audio's 3.5" Coil Neo powered subwoofer. Why, because people asked for it and we thought it would be a fun project, that' exactly what it turned out to be. The Neo Elite is a subwoofer that' happy doing SPL but is even more suited for high power ground pounder applications. If you're in the market for a subwoofer that can take a lot of power get loud and crush lows, then this could be the one for you. The Neo Elite comes with a Large flat wound 3.5" Coil, 10" Spaced Spiders, The DC Frame, 6 columns of NEO, multi tensile leads sewn to the top spider and a High-Performance cone and surround.
Features:
- 2024 CONE CHANGE : NOW COMES STOCK WITH LR CONE / SURROUND
- Extremely strong kraft pulp fiber reinforced cone
- Wide Long Throw foam surround
- Dome propylene dust cover with White DC logo
- 10” OD Spaced Spiders
- Extra heavy duty sewn tinsel lead wire
- Cast DC Series aluminum black frame / no invert mount
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- 8 AWG OFC Direct leads
- 3.5” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum former
- 3500 Watts RMS 6000 Watts Peak
T/S Parameters
15" | 18" | |
---|---|---|
Mounting Depth | 12" | 13" |
Mounting Hole Diameter | 14.25" | 16.90" |
Outside Driver Diameter | 15.7" | 18.5" |
VC Diameter | 3.5" | 3.5" |
Displacement | .23 ft | .26ft |
Power Handling rms/peak | 3500/6000 | 3500/6000 |
Ohm Options | d.7/d1/d2/d4 | d.7/d1/d2/d4 |
Sd | 815 cm | 1159 cm |
Vas | N/A L | L |
Cms | N/A um/n | um/n |
Mms | N/A g | g |
Fs | N/A Hz | Hz |
Bl | N/A N/A | N/A |
Re | N/A Ohm | Ohm |
Le | N/A mH | mH |
Qms | N/A | |
Qes | N/A | |
Qts | N/A | |
Xmax | 34mm | 34mm |
Ref SPL @1 watt | N/A db | db |
Suggest Sealed Box | N/A ft | N/A ft |
Suggested Ported Box | 3.0 ft | 5.5 ft |
