DC Audio

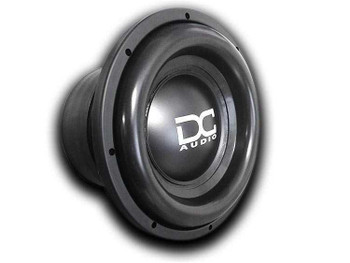

DC AUDIO XL 10 M4 SPL 2200w Subwoofer
- SKU:
- DC AUDIO XL 10 M4 SPL
- Availability:
- Estimated build time of 7 - 10+ business days.
- Weight:
- 60.00 LBS
- Shipping:
- Calculated at Checkout
Description
The XLM4-SPL is the next generation of our most award-winning driver. The XLM4-SPL has an added pole vent, redesigned top plate and T yoke, larger magnets wrapped in a stylish motor boot an 8-layer flat wound voice coil, upgraded cone and surround. We are always looking to make great even better and the XLm4 is again a step in that direction. Anyone looking for a subwoofer that not only sounds great but is a beast in the SPL lanes, look no further, you have found what you have been searching for.
Key Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Triple 8"OD Stiff semi cup progressive roll spiders
- Dual Extra heavy duty interweaved tinsel lead wire
- Cast aluminum black frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- Chrome spring loaded push terminals
- 8 Layer Flat Wound Hi-temp Aluminum Voice Coil
| 10" | 12" | 15" | 18" | |
|---|---|---|---|---|
| Mounting Depth | 8.25" | 9" | 10.25" | 11.25" |
| Mounting Hole Diameter | 9.35" | 11" | 14" | 16.75" |
| Outside Driver Diameter | 11" | 12.5" | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" | 3.0" | 3.0" |
| Displacement | .18 ft | .19 ft | .23 ft | .26ft |
| Power Handling rms/peak | 2200/4400 | 2200/4400 | 2200/4400 | 2200/4400 |
| Ohm Options (dual) | .7/1/1.4/2/4 | .7/1/1.4/2/4 | .7/1/1.4/2/4 | .7/1/1.4/2/4 |
| Sd | 324 cm | 494 cm | 791 cm | 1159 cm |
| Vas | 12.42 L | 25.77 L | 66.02 L | 144.36 L |
| Cms | 0.085 Mm/n | 0.08 Mm/n | 0.07 Mm/n | 0.07 Mm/n |
| Mms | 171.77 g | 213.7 g | 306.7 g | 346.07 g |
| Fs | 41.7Hz | 38.5 Hz | 34.3 Hz | 32.3 Hz |
| Bl | 22.73 N/A | 22.73 N/A | 22.73 N/A | 22.73 N/A |
| Re | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm |
| Le | 5.2 mH | 5.2 mH | 3.5 mH | 3.5 mH |
| Qms | 11.24 |
12.92 |
8.18 | 8.32 |
| Qes | 0.35 |
0.403 |
0.706 | 0.718 |
| Qts |
0.34 | 0.391 |
0.65 | 0.661 |
| Xmax | 26mm | 26mm | 26mm | 26mm |
| Ref SPL @1 watt | 85.9 db | 87.5 db | 87.3 db | 90.4 db |
| Suggest Sealed Box | .75 ft | 1.0 ft | 2.0 ft | 3.5 ft |
| Suggested Ported Box | 1.0 ft | 1.50 ft | 3.0 ft | 5.5 ft |
2 Reviews
-
Awesome wonderful beautiful
Words cannot describe the feeling that I get from the speaker Or can they if you know you know what I’m talking about.
-
Beast Sub
I am thoroughly impressed with my xl spl10d2, pics do this sub no justice whatsoever. In about 1.25cuft, after displacement, tuned to 32hrtz, on an Incriminator Audio 3rd gen IA20.1 at 1ohm, and it thrives. It is just as musical as the pair of RE Audio sx10d4s that it replaced, yes, this one sub puts in the work of two. It may not get as loud, but its lows have more authority, it just drops down there and begs for more. And there are still so many that spit out that DC Audio's soft parts are not good for the low lows, I beg to differ. This is my second DC sub, my first was a lvl4 12 a few years ago, and it was a beast as well. Thank you DC Audio-Rusty, for this beautiful 56lb beast, that hits them lows with the a fore mentioned authority, I simply love mine. Let them go ahead and think that DC subs can't handle the lows, because we for sure, know the truth. My only regret is that I can't afford to run a pair of the bad boys.
