Description

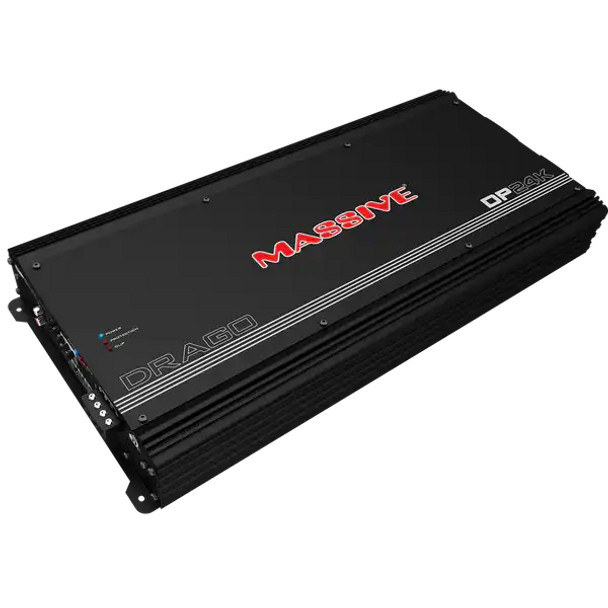

ust when you thought that it was too complicated to properly power up megawatt subwoofers; Massive Audio comes along and releases the DP24K Super Amp!
All Digital, Ultra High-Speed Switching, Crystal Clean Full Range with a TRUE power output of 24,192 Watts RMS @ 1 ohm @ 18V. The current draw at 1 Ohm impedance is a staggering 1,550 Amps / 14.4 VDC)
This amplifier measures in at only 2.98” x 10.86” x 24.09” and packs twin full-time exhaust fans to cool its output. The DP24K can do all this and operate at DC 9V—18V. Protection is key and is controlled by a processor that illuminates a red LED when 85% of the amplifier’s capacity limit is reached. Adjustable Hi Pass and Low Pass crossovers along with a parametric equalizer with a variable 0-12dB bass boost allow for complete control.
Features:
- Up to 24,192 Watts of RMS power
- 1 Ohm Stable
- Low, High, Band Pass Filters
- Parametric EQ
- Subsonic Filter Fixed @ 10Hz
- Bass Boost Remote Input (Optional)
- Dual Cooling Fans
- 6 Way Protection with Clip Capacity Limiter LED’s
Specs:
- RMS @ 1 Ohm 14.4V 19,050w x 1
- PEAK Power 50,000w x 1
- RMS @ 2 Ohm 13,450w x 1
- Bridged RMS n/a
- Min Impedance 1 Ohm
- Min Ohm Bridged n/a
- THD 0.9% Continuous @ 4Ohm, 100Hz
- S/N >90 dB
- Max Voltage 18v
- Max RCA Voltage 10v (+/- 5%)
- Freq. Response 10Hz ~ 12KHz (+/-1dB)
- Dimensions 10.86 (in) W x 2.98 (in) H x 24.09 (in) L
