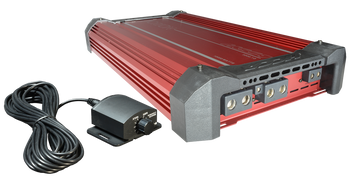

ORION HCCA3000.1DSPLX HCCA Series 3000W RMS 1-Channel Class-D Amplifier

(1 review) Write a Review
SKU:
ORI-HCCA3000.1D-SPLX
  • ORION HCCA3000.1DSPLX HCCA Series 3000W RMS 1-Channel Class-D Amplifier
  • ORION HCCA3000.1DSPLX HCCA Series 3000W RMS 1-Channel Class-D Amplifier
  • ORION HCCA3000.1DSPLX HCCA Series 3000W RMS 1-Channel Class-D Amplifier
  • ORION HCCA3000.1DSPLX HCCA Series 3000W RMS 1-Channel Class-D Amplifier
1800woofers Price $699.95

Description

In the 1980's, the technology was transistors and massive class AB designs that stretched the length of a football field, today it's more efficient MOSFET class D designs, but the outcome is still the same: serious amounts of power driving ridiculously low impedance's at completely sick output levels. Whether you're looking for an SPL world record or you just want to do some serious damage on the streets, these amplifiers wil ensure they hear you before they see you. Hellacious power intersects with extreme efficiency under rugged die-cast aluminum covers with illuminated ORION badges that tell the world that HCCA is back! And to make the comeback even sweeter, these amps even offer our patented ESP2 features.

Amplifier Section HCCA3000.1D-SPLX RMS WATIS@ 4 OHM MONO @ 0.5% THD+N 1350W RMS WATIS@ 2 OHM MONO @ 0.5% THD+N 2100W RMS WATIS@ 1 OHM MONO @ 0.5% THD+N 3000W Amplifier Efficiency > 88% Signal toNoiseratioatratedoutput power
andlowestimpedance >90dB Remote Gain Function Yes Distortion at Rated Power 0.5% THD+N Frequency Response 15 Hz to 250Hz +/- 2.5 dB linear Bandwidth 15 Hz to 250Hz +/- 3 dB Damping Factor 200 Input Sensitivity(rms) 200mV to 8V Supply Voltage Range 9 to 16V Protection thermal, DC offset, short protection, undervoltage, over-voltage WireGauge Power AWG "O" X 3PCS Re mote AWG 10 Ground AWG "O" X 3PCS Speaker AWG 4 Input Impedance 24k Balanced input (CMRR) Yes Dimensions(inches) 16.5 X11.7X2.8 Crossover Section Low Pass Crossover Continuously variable (40-300Hz) Phase shift control 0 to 180 Bass Boost 0-18dB variable Infrasonic(sub sonic) Filter Selectable On/Off Octave 12dB at 25Hz
View AllClose

1 Review

  • 5
    ORION HCCA3000.1DSPLX

    Posted by Anonymous on Apr 29th 2024


    Best amp money can buy hands down.
