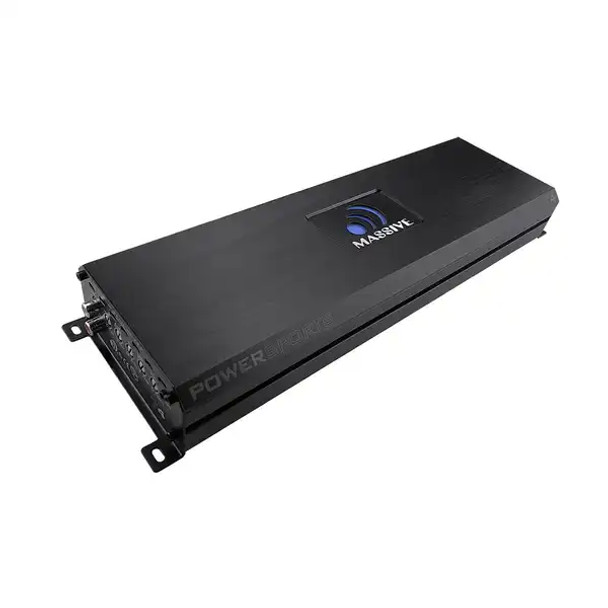

T4 - 2,000w RMS Mono Block Marine IP65 Amplifier by Massive Audio®

Massive Audio’s TRIDENT Series Amplifiers come dressed for action in their black anodized brushed aluminum heat-sink, punctuated with stainless-steel end caps and a blue backlit logo. Its dimensions are 4.25” W x 1.6” H x 13" L, making it both Powerful and diminutive. This 1 Ω stable Mono Block is rated at 2000 Watts X 1Ω and is Water Resistant as a result of its Dura-Coated 320°F Epoxy PCB.

Inside you will find a 4 Layer PCB of Class D design including Surface Mounted parts. Like all Massive Audio Amplifiers, you’ll find our advanced 5 Way Protection Circuitry and a full array of adjustments to adapt to any system configuration. One example is the -3 ~ + 12DB Variable Bass Boost from 40 Hz - 100 Hz. The built-in OEM line converter can handle signals up to 9 volts to activate the Auto Turn On feature eliminating the need for a separate turn on wire.

When this ATO is used the 12 volt input converts to a 12 volt output that can activate additional system devices when necessary. The T3 also has a "Docking Port" to plug in an optional Railcap Booster (RCLX) or RCT. An optional Remote Gain control (UR1) is available for purchase.

Features:

• IP65 Tested & Approved Water Resistant
• Extreme Power in a Mini Compact Footprint
• Conformal Dura-Coated 320°F Epoxy PC Boards to resist Moisture, Dust and Extreme Heat
• 1 Ohm Stable Design
• 4 Layers PCB design with SMD parts
• Built-in Noise Reduction Circuitry
• Full MOSFET with High Grade Switching Devices
• Built-in Auto Sensing Turn On Function (Hi-Inputs)
• 12V Remote Output for External Devices (Hi-Inputs)
• -3 ~ + 12DB Variable Bass Boost 40 Hz - 100 Hz
• Advanced 5 Way Protection Circuitry
• RCLX ~ Railcap Booster (Optional)
• World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)

Specs:

• Peak Output Power @ 14.4V: 4000W Max Mono
• 1 Ohm RMS: 2000w X 1
• 2 Ohm RMS: 1000W x 1
• 4 Ohm RMS: 500w x 1
• 4 Ohm Bridged: N/A
• Input Level: 0.2~9.0v
• Freq. Response: 10Hz~150KHz
• THD at 4 Ohm Load 30% Rated Power: Less Than 0.03%
• S/N Ratio: More Than 85dB
• BassBoost: 40Hz~100Hz
• Minimum Load: 1 Ohm Mono
• Dimensions: 1.6"H x 4.25"W x 13.00"L
